High concentration ratio, high concentration efficiency, easily to be operated, and once-getting the final concentrate and gangue.
Processing ability
10–60 t/h
Feeding size
0.15–2 mm
More than 200
kinds of materials
Shaking table is a new physical concentrating equipment, it mainly used for concentrating gold, silver, lead zinc, tantalum zinc, tantalum nickel, tin etc rare metal and rich metal ore.
Shaking table combines the national concentrator table and weight concentrating technology, the advantage is high concentration ratio, high concentration efficiency, easily operated, and once get the final concentrate and gangue. It is different from the traditional in non-medicine, energy saving, easily deal etc, high price performance ratio.

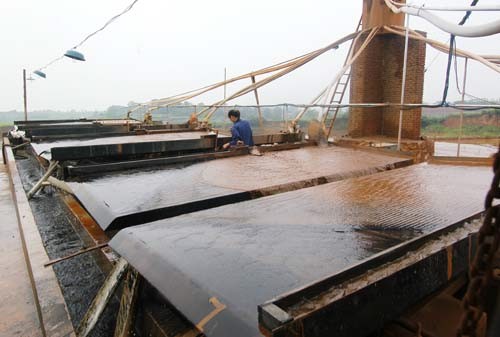

The ore processing with concentrator table is on the lean table board with raffles. The ore is fed in by the ore feeding chute upper table board, meanwhile, the water is fed by water-feeder transversely. Under the impact of vibrating wave, the materials go on vertical and proportion and granularity move down in ladder-shipped state along with their own movement, then discharge from the fine concentrate end and tailings end, finally they are separated out to fine concentrate, middle concentrate and tailings.
| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length （mm） |
4450 | 4450 | 4450 |
| Driving part Width （mm） |
1855 | 1855 | 1855 | |
| Concentrate part Width （mm） |
1546 | 1546 | 1546 | |
| Max.feeding size（mm） |
2 | 0.5 | 0.15 | |
| Feeding amount （t/d） |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke （mm） |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity （t/d） |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area（㎡） |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity | |||
