High drying strength, high efficiency, advanced inner structure, high drying capacity, high automation level, big processing capacity, lower investment cost.
Cylinder capacity
9-285m³
Processing capacity
10-30t/h
More than 200
kinds of materials

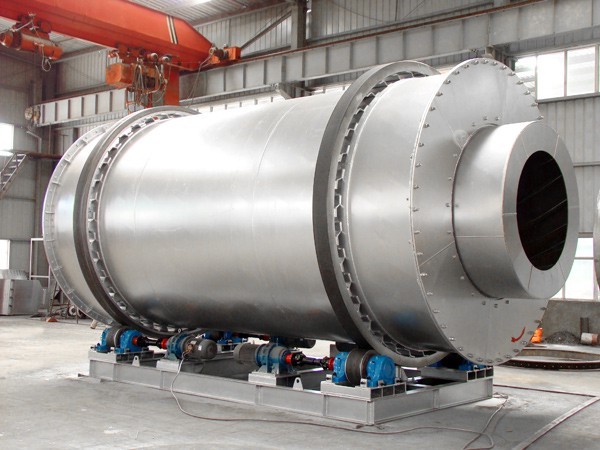

The sand dryer, also called sand rotary dryer, is mainly used to dry the materials with a certain humidity and granularity, including quartz sand, ore powder, limestone, coal powder, clay, and various metal concentrate, tailing, etc. It is widely used in building material, metallurgy, chemical engineering, cement industry, and so on.
1. The particle size and humidity of the final product of the sand dryer can be controlled according to the user's requirement.
2. The sand dryers with different specifications can be selected in terms of different work amount. 3. The sand dryer is of strong anti-overload capacity, high handling capacity, less fuel consumption, new-type inner structure, and low cost. 4. The humidity of its final product is less than 1% and the components of the raw material will not be damaged.
| Item/Unit/Model | Φ2.5×7m | Φ2.7×7m | Φ3.0×7.0m | Φ3.2×7.0m | Φ3.6×8m |
| Diameter of outer cylinder(m) | 2.5 | 2.7 | 3.0 | 3.2 | 3.6 |
| Length of outer cylinder(m) | 7 | 7 | 7.0 | 7.0 | 8 |
| Cylinder volume( m³ ) | 16.63 | 16.63 | 52.678 | 52.678 | 81.38 |
| Rotating speed of cylinder(rpm) | 4-10 | 4-10 | 4 -10 | 4 -10 | 4 -10 |
| Initial moisture of slag(%) | 10-12 | 10-12 | 10-12 | 10-12 | 10-12 |
| Final moisture of slag(%) | 1 | 1 | 1 | 1 | 1 |
| Initial moisture of yellow ground(%) | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Final moisture of yellow ground (%) | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 |
| Highest intake air temperature(℃) | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
| Production capacity(T/h) | Yellow sand25-30 Slag20-25 |
Yellow sand30-35 Slag25-30 |
Yellow sand35-40 Slag30-35 |
Yellow sand45-50 Slag35-40 |
Yellow sand65-70 Slag60-65 |
| Motor type | Y2-132m-4E | Y2-132m-4E | Y2-160m-4 | Y2-160m-4 | Y2-160m-4 |
| Motor power(kw) | 7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 15×4 |
| Reducer type | XWD7-23-11W | XWD7-23-11W | XWD6-23-7.5KW | XWD6-23-7.5KW | XWD8-23-15KW |
| Velocity ratio of reducer | 29 | 29 | 29 | 29 | 29 |
