Simple structure, high processing capacity, easy-to-operate and easy-to-maintain, lower operation cost, high separation density.
Processing ability
1–220 t/h
Feeding size
0-3 mm
More than 200
kinds of materials

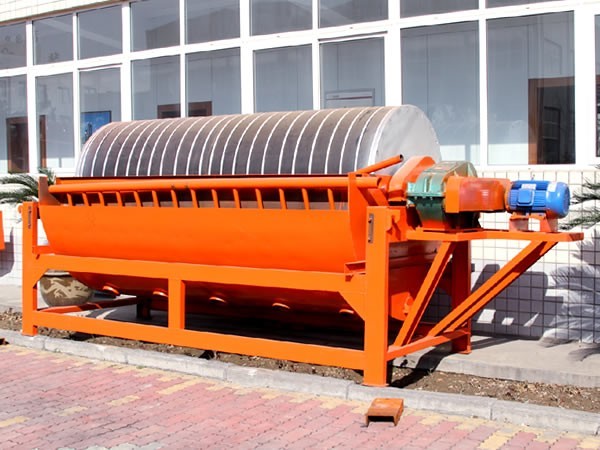

The mineral separator, made by Hongxing, is used to separate the material with magnetism from other materials. It is often used to process magnetite, hematite, ferrous manganese ore, manganese ore, etc.
1. Simple structure, big handling capacity.
2. Stable property, simple operation. 3. Long service life, less abrasion.1. After the primary and the secondary crushing processes, the crushed lean iron ore will be processed by the mineral separator to remove barren rock from it and to increase its grade, which can reduce the load for the next process.
2. After the hematite calcination process, if there is still some raw ore with metal, it can be separated by the mineral separator and be sent back to the kiln to be calcined again. 3. In ceramics, it can be used to remove iron from porcelain clay to increase the quality of ceramic products. 4. The iron removal operation with the mineral separator is necessary for some industries like refractory material industry.| Model | Shell diameter （mm） |
Shell lenght （mm） |
Shell rotation speed（r/min） |
Feeding size （mm） |
Processing capacoty （t/h） |
Power（kw） |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
