Long flowing line and many screening specifications, strong violent vibrating force, high screening efficiency and low vibrating noise.
Processing capacity
10-600t/h
Feeding size
≤200-≤300mm
More than 200
kinds of materials

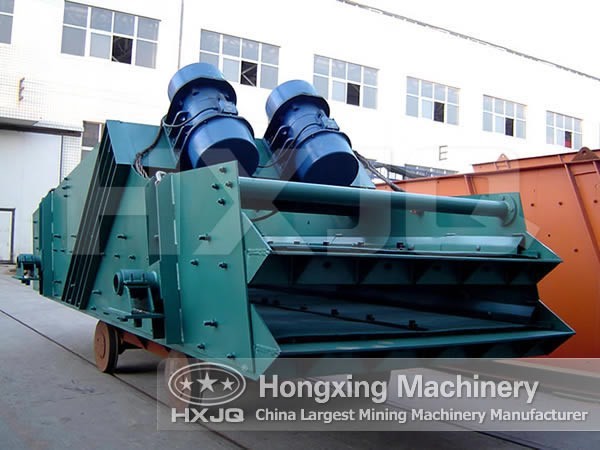

The linear vibrating screens are used in many industries, such as, steel making, mining, quarrying, foundries, food processing and chemical industry for the separating of bulk materials like stone aggregates, different kind of sand, active carbon and other materials.
The vibrating equipment is used to separate materials. It is composed of main frame, screen, motor, eccentric bock, rubber spring, coupler, etc. Our company supplies suitable type according to customers' demands. The features are as follows: simplicity, reliability, high screening capacity and high durability.
.jpg)
1. Long flowing line and many screening specifications.
2. Strong violent vibrating force.
3. High screening efficiency and low vibrating noise.
4. Firm and durable structure, convenient maintenance and safe operation.
| Model | Sieve layer |
Sieve area (m²) |
Mesh size (mm) |
Max. feeding size (mm) |
>Processing capacity (m³/h) |
Vibrating Frequency (r/min) |
Double amplitude (mm) |
Motor power (kw) |
Sieve obliquity (°) |
Sieve specification (mm) |
>Dimensions (L×W×H) (mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 6P 5.5 | 20 | 1200×2500 | 2930×1860×870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 6P 5.5 | 20 | 1200×2500 | 3070×1860×1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3000 | 3430×1860×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3000 | 3570×1860×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3700 | 4050×1860×870 |
| 3YK1237 | 3 | 13.32 | 4-50 | 400 | 16-90 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3700 | 4270×1860×1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 6P 11 | 20 | 1500×3500 | 4120×2210×1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 6P 11 | 20 | 1500×3500 | 4360×2210×1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 6P 11 | 20 | 1500×4500 | 5120×2210×1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 800-970 | 8 | 6P 15 | 20 | 1500×4500 | 5360×2210×1610 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 6P 15 | 20 | 1500×4500 | 5930×2210×2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 6P 11 | 20 | 1500×4800 | 5420×2210×1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 6P 15 | 20 | 1500×4800 | 5660×2210×1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 6P 18.5 | 20 | 1500×4800 | 6230×2210×2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 6P 18.5 | 20 | 1800×4800 | 5420×2550×1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 750 | 8 | 6P 18.5 | 20 | 1800×4800 | 5660×2550×1780 |
| 4YK1848 | 4 | 34.56 | 5-80 | 400 | 32-285 | 750 | 8 | 6P 22 | 20 | 1800×4800 | 6290×2550×2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 800-970 | 8 | 6P 22 | 20 | 1800×5400 | 5960×2550×1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 6P 22 | 20 | 1800×5400 | 6260×2550×1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 6P 22 | 20 | 1800×5400 | 6830×2550×2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 6P 30 | 20 | 2100×6000 | 6720×2840×1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 970 | 8 | 6P 30 | 20 | 2100×6000 | 7030×2840×1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 6P 37 | 20 | 2100×6000 | 7300×2840×2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 6P 30 | 20 | 2400×6000 | 7020×3140×1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 6P 37 | 20 | 2400×6000 | 7300×3140×1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 8 | 6P 45 | 20 | 2400×6000 | 7600×3140×2380 |
| 2YK2870 | 2 | 39.2 | 5-100 | 400 | 120-680 | 750 | 8 | 8P 22×2 | 20 | 2800×7000 | 7600×4320×1620 |
| 3YK2870 | 3 | 58.8 | 5-100 | 400 | 180-720 | 750 | 8 | 8P 22×2 | 20 | 2800×7000 | 7800×4320×2120 |
| 2YK3072 | 2 | 43.2 | 5-100 | 400 | 200-700 | 750 | 8 | 8P 22×2 | 20 | 3000×7200 | 7800×4520×1750 |
| 3YK3072 | 3 | 64.8 | 5-100 | 400 | 230-800 | 750 | 8 | 8P 22×2 | 20 | 3000×7200 | 8000×4520×2300 |
