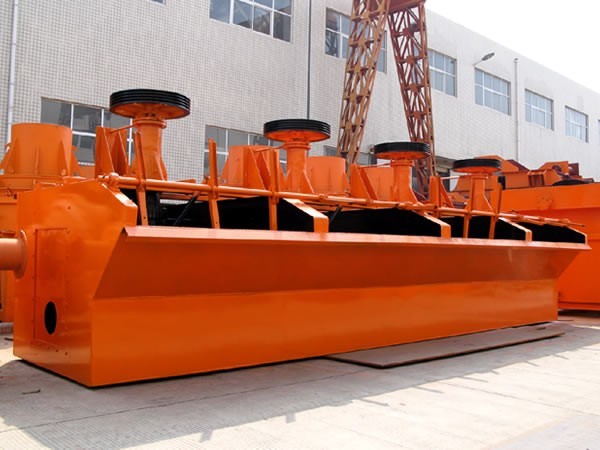

Lower operation cost, high separation density, lower content of the fineness coal, better flotation efficiency, long lifespan of those wearing parts.
Processing ability
0.2–16 m³/min
Rotation speed
191–400 r/min
More than 200
kinds of materials
1. Lower operation cost.
it can help to save 1/3 to 1/2 power by comparing with the other traditional flotation machines.
2. High separation density, lower content of the fineness coal.
The content of the fineness coal can be reduced 1-2% by comparing with the other machines.
3. better flotation efficiency.
the automatic electric controlling device is being installed in the interior of the body, so it has the higher degree of the foam refinement, which can greatly increase the flotation efficiency.
4. long lifespan of those wearing parts.
The impellers are being in one active attitude, which are playing one role of removing the debris, so it can help to decrease the phenomenon of damaging the machine.
1. the impeller consists of closed double section cones, which can produce strong down-circulation.
2. Big air inlet amount, lower energy consumption.
3. Each trough has the function of air suction, ore pulp suction and flotation, it can make a flotation circuit itself, with no auxiliary equipment. The horizontal configuration makes it easy to change process.
4. Rational ore pulp circulation reduces coarse sand sediment.
5. There are automatic and electric control devices of ore pulp level, which makes easy adjustment.
| Model | Trough cubage （m³） |
Inside dimensions （L×W×H） （m） |
Air suction amount （m³/㎡·min） |
Power （kw） |
Motor model | Processing capacity （m³/min） |
Single trough weight (t) |
| BF-0.37 | 0.37 | 0.74×0.74×0.75 | 0.9～1.05 | 1.5 | Y90L-4 | 0.2～0.4 | 0.5 |
| BF-0.65 | 0.65 | 0.85×0.95×0.9 | 0.9～1.10 | 3.0 | Y132S-6 | 0.3～0.7 | 1.0 |
| BF-1.2 | 1.2 | 1.05×1.15×1.10 | 1.0～1.10 | 5.5 4.0 |
Y132M2-6 Y132M1-6 |
0.6～1.2 | 1.4 |
| BF-2.0 | 2.0 | 1.40×1.45×1.12 | 1.0～1.10 | 7.5 | Y160M-6 | 1.0～2.0 | 1.8 |
| BF-2.8 | 2.8 | 1.65×1.65×1.15 | 0.9～1.10 | 11 | Y180L-8 | 1.4～3.0 | 2.2 |
| BF-4.0 | 4.0 | 1.9×2.0×1.2 | 0.9～1.10 | 15 | Y200L-8 | 2～4 | 2.6 |
| BF-6.0 | 6.0 | 2.2×2.35×1.3 | 0.9～1.10 | 18.5 | Y225S-8 | 3～6 | 3.3 |
| BF-8.0 | 8.0 | 2.25×2.85×1.4 | 0.9～1.10 | 22 30 |
Y225M-8 Y250M-8 |
4～8 | 4.2 |
| BF-10 | 10 | 2.25×2.85×1.7 | 0.9～1.10 | 22 30 |
Y225M-8 Y250M-8 |
5～10 | 4.7 |
| BF-16 | 16 | 2.85×3.8×1.7 | 0.9～1.10 | 37 45 |
Y280S-8 Y280M-8 |
8～16 | 8.4 |
| BF-20 | 20 | 2.85×3.8×2.0 | 0.9～1.10 | 37 45 |
Y280S-8 Y280M-8 |
10～20 | 8.7 |
| BF-24 | 24 | 3.15×4.15×2.0 | 0.9～1.10 | 45 | Y280M-8 | 12～24 | 9.2 |
